L’ATX dans toute sa simplicité
Si vous êtes du genre à préférer regarder la fiche technique du produit plutôt que sa photo sur l’emballage, il y a de fortes chance que votre bonheur se trouve dans cette section.
• Marketing-less
| Carte | Format | Alim | Slots DIMM | PCIe | Stockage | Spécificités | Page Prod. | MSRP | Prix moyen |
|---|---|---|---|---|---|---|---|---|---|
| ASUS Z170-Deluxe | ATX | 22 phases | 4x DDR4-3466 | 3x PCIe 3.0 x16 4x PCIe 3.0 x1 |
1x M.2 x4 1x M.2 1x SATA Express 8x SATA III |
WiFi 802.11 a/b/g/n/ac Double LAN 22 phases (16/4/2) |
 |
329,90€ | 329,90€ |
| ASRock Z170 Extreme 7+ | ATX | 12 phases | 4x DDR4-3600+ | 4x PCIe 3.0 x16 1x PCIe 3.0 x1 1x PCIe 2.0 x1 1x mini-PCIe |
3x M.2 x4 3x SATA Express 10x SATA III |
2x BIOS UEFI USB 3.1 Type A/C Double LAN Gros équipement |
|
– | 299,90€ |

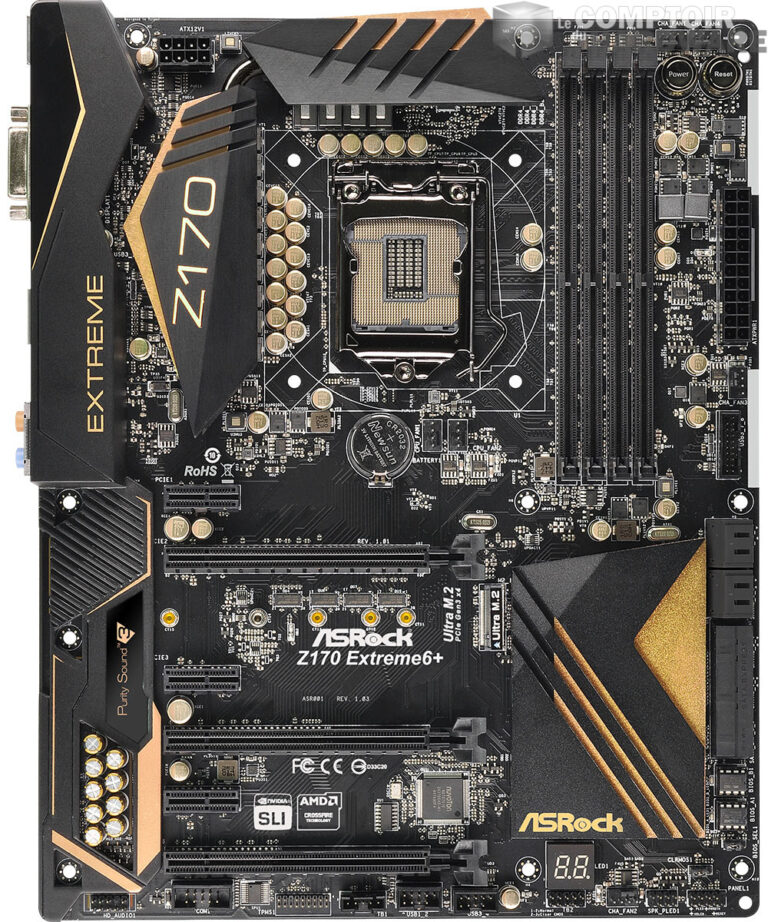

| ASRock Z170 Extreme 6+ | ATX | 12 phases | 4x DDR4-3600+ | 3x PCIe 3.0 x16 3x PCIe 3.0 x1 |
1x M.2 x4 2x SATA Express 8x SATA III |
2x BIOS UEFI USB 3.1 Type A/C |
|
– | 249,90€ |
| ASRock Z170 Extreme 6 | ATX | 12 phases | 4x DDR4-3600+ | 3x PCIe 3.0 x16 3x PCIe 3.0 x1 |
1x M.2 x4 2x SATA Express 8x SATA III |
2x BIOS UEFI USB 3.1 Type A/C |
|
– | 229,90€ |
| ASRock Z170 Extreme 4+ | ATX | 10 phases | 4x DDR4-3200+ | 3x PCIe 3.0 x16 3x PCIe 3.0 x1 |
1x M.2 x4 3x SATA Express 6x SATA III |
2x BIOS UEFI USB 3.1 Type A/C |
|
– | – |

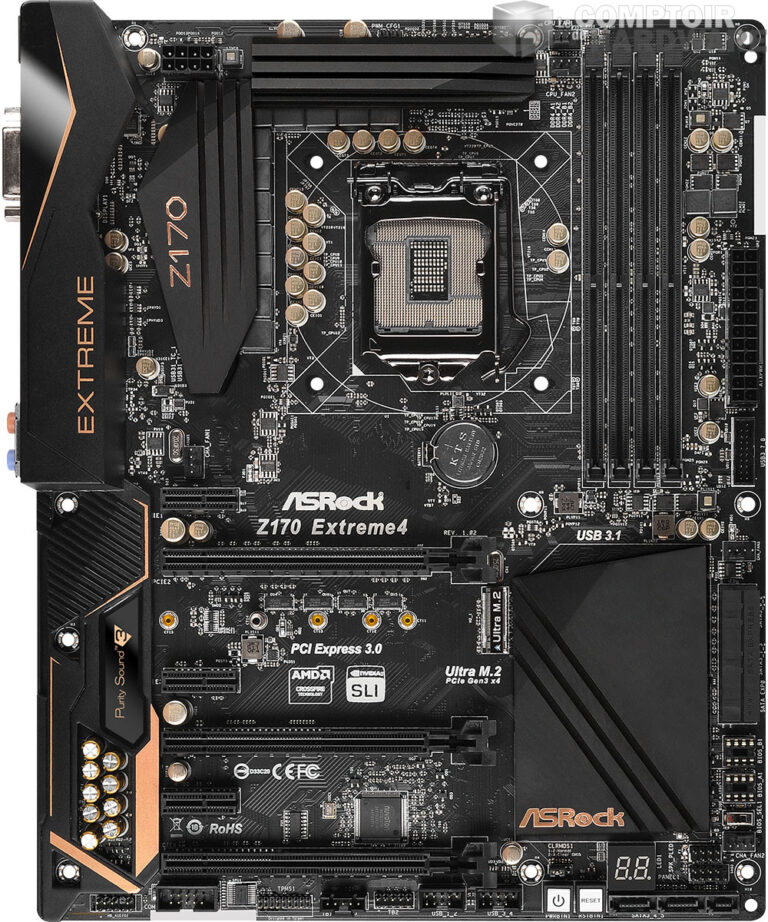

| ASRock Z170 Extreme 4 | ATX | 10 phases | 4x DDR4-3200+ | 3x PCIe 3.0 x16 3x PCIe 3.0 x1 |
1x M.2 x4 3x SATA Express 6x SATA III |
2x BIOS UEFI USB 3.1 Type A/C |
|
– | 209,90€ |
| GIGABYTE Z170X-UD5 | ATX | – | 4x DDR4-3200 | 3x PCIe 3.0 x16 4x PCIe x1 |
2x M.2 x4 3x SATA Express 8x SATA III |
Double BIOS UEFI USB 3.1 Type A/C |
|
– | – |
| ASUS Z170-A | ATX | 10 phases | 4x DDR4-3400 | 3x PCIe 3.0 x16 3x PCIe 3.0 x1 1x PCI |
1x M.2 x4 1x SATA Express 6x SATA III |
– | |
159,90€ | 169,90€ |
| GIGABYTE Z170X-UD3 | ATX | – | 4x DDR4-3200 | 3x PCIe 3.0 x16 3x PCIe 3.0 x1 |
2x M.2 x4 3x SATA Express 6x SATA III |
Double BIOS UEFI USB 3.1 Type A/C |
|
– | 169€ |

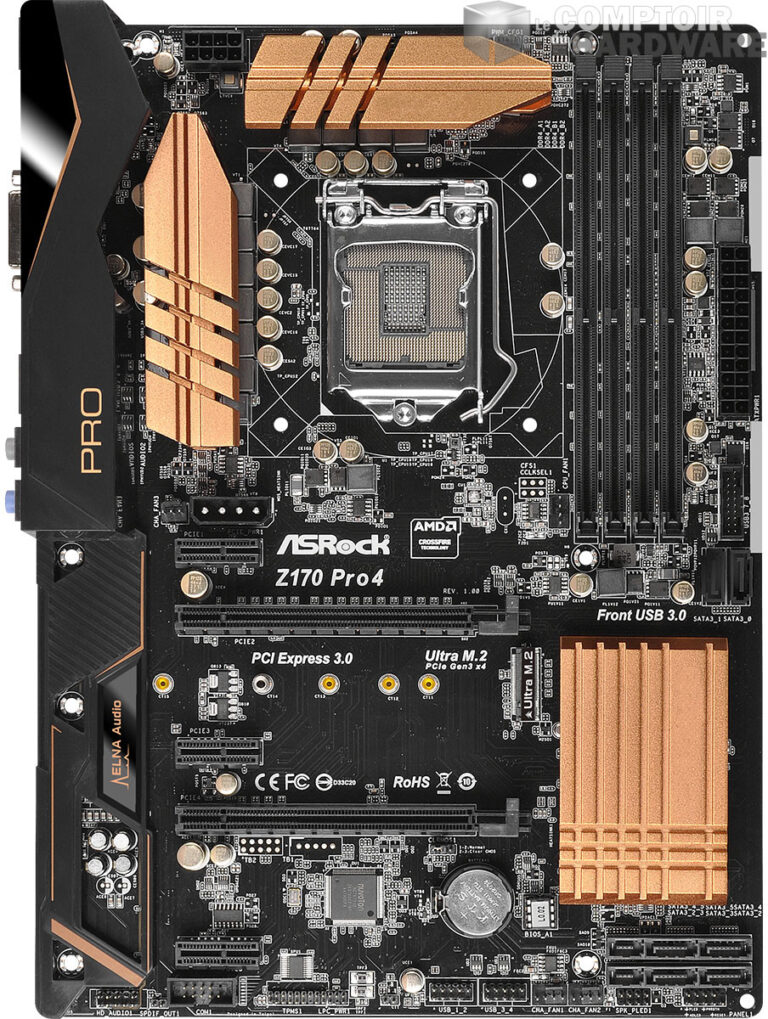

| ASRock Z170 Pro4 | ATX | 10 phases | 4x DDR4-3200+ | 2x PCIe 3.0 x16 3x PCIe 3.0 x1 |
1x M.2 x4 2x SATA Express 6x SATA III |
– | |
– | 154,90€ |
| ASUS Z170-AR | ATX | 10 phases | 4x DDR4-3400 | 3x PCIe 3.0 x16 3x PCIe 3.0 x1 1x PCI |
1x M.2 x4 1x SATA Express 6x SATA III |
– | |
154,90€ | – |
| GIGABYTE Z170XP SLI | ATX | – | 4x DDR4-3466 | 3x PCIe 3.0 x16 2x PCIe 3.0 x1 2x PCI |
1x M.2 x4 3x SATA Express 6x SATA III |
Double BIOS UEFI USB 3.1 Type A/C |
|
– | 154,90€ |

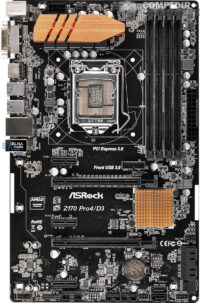

| ASRock Z170 Pro4/D3 | ATX | 10 phases | 4x DDR3/DDR3L-1866 | 2x PCIe 3.0 x16 3x PCIe 3.0 x1 |
2x SATA Express 6x SATA III |
DDR3/DDR3L | |
– | – |

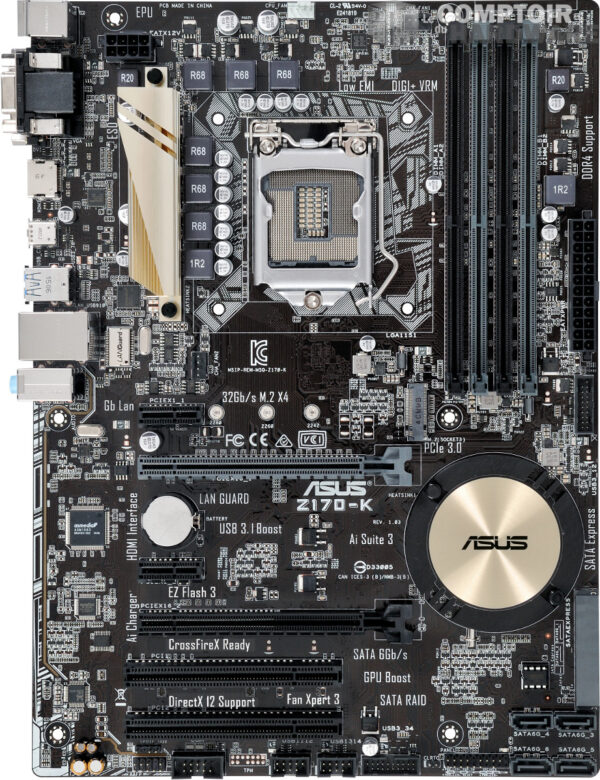

| ASUS Z170-K | ATX | 7 phases | 4x DDR4-3466 | 2x PCIe 3.0 x16 2x PCIe 3.0 x1 2x PCI |
1x M.2 x4 1x SATA Express 6x SATA III |
– | |
144,90€ | 149,90€ |

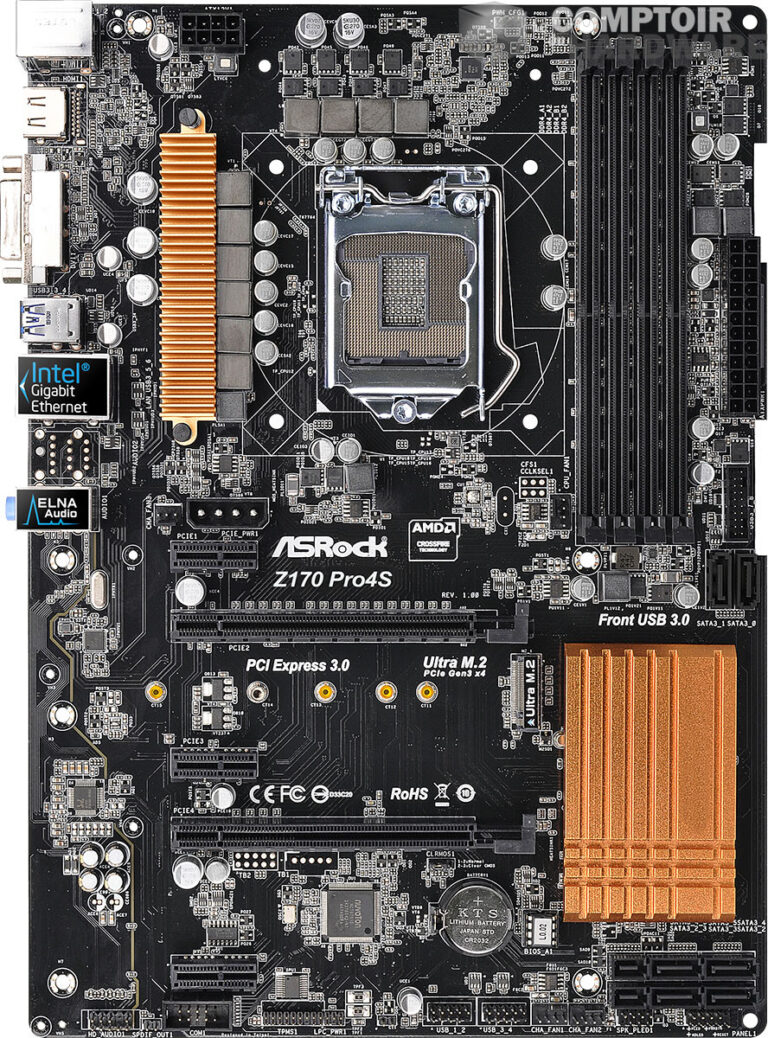

| ASRock Z170 Pro4S | ATX | 10 phases | 4x DDR4-3200+ | 2x PCIe 3.0 x16 3x PCIe 3.0 x1 |
1x M.2 x4 2x SATA Express 6x SATA III |
Dissipation moindre que sur la Pro4 | |
– | 139,90€ |
| GIGABYTE Z170-HD3P | ATX | – | 4x DDR4-3200 | 2x PCIe 3.0 x16 2x PCIe 3.0 x1 2x PCI |
1x M.2 x4 3x SATA Express 6x SATA III |
Double BIOS UEFI USB 3.1 Type A/C |
|
– | 139€ |
| GIGABYTE Z170-D3H | ATX | – | 4x DDR4-3200 | 2x PCIe 3.0 x16 2x PCIe 3.0 x1 3x PCI |
1x M.2 x4 3x SATA Express 6x SATA III |
Double BIOS UEFI USB 3.1 Type A/C |
|
– | 137,95€ |
| MSI Z170A SLI Plus | ATX | – | 4x DDR4-3600 | 3x PCIe 3.0 x16 3x PCIe 3.0 x1 |
1x M.2 x4 6x SATA III |
– | |
– | – |

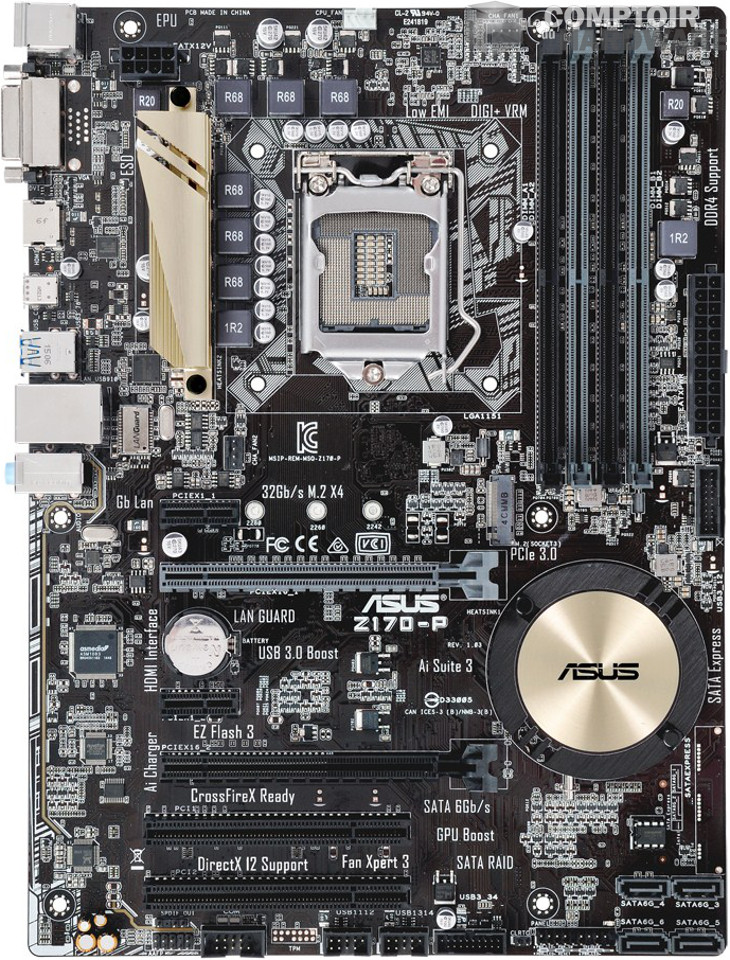

| ASUS Z170-P | ATX | 7 phases | 4x DDR4-3466 | 2x PCIe 3.0 x16 2x PCIe 3.0 x1 2x PCI |
1x M.2 x4 4x SATA III |
– | |
129,90€ | 134,90€ |
| MSI Z170A PC Mate | ATX | 6 phases | 4x DDR4-3200 | 2x PCIe 3.0 x16 3x PCIe 3.0 x1 2x PCI |
1x M.2 x4 1x SATA Express 6x SATA III |
– | |
129€ | – |
| GIGABYTE Z170-HD3 | ATX | – | 4x DDR4-3200 | 2x PCIe 3.0 x16 2x PCIe 3.0 x1 2x PCI |
1x M.2 x4 3x SATA Express 6x SATA III |
Double BIOS UEFI | |
– | – |
| MSI Z170A G43 Plus | ATX | – | 4x DDR4-3600 | 2x PCIe 3.0 x16 3x PCIe 3.0 x1 2x PCI 1x M.2 |
1x M.2 x4 1x SATA Express 6x SATA III |
– | |
– | – |

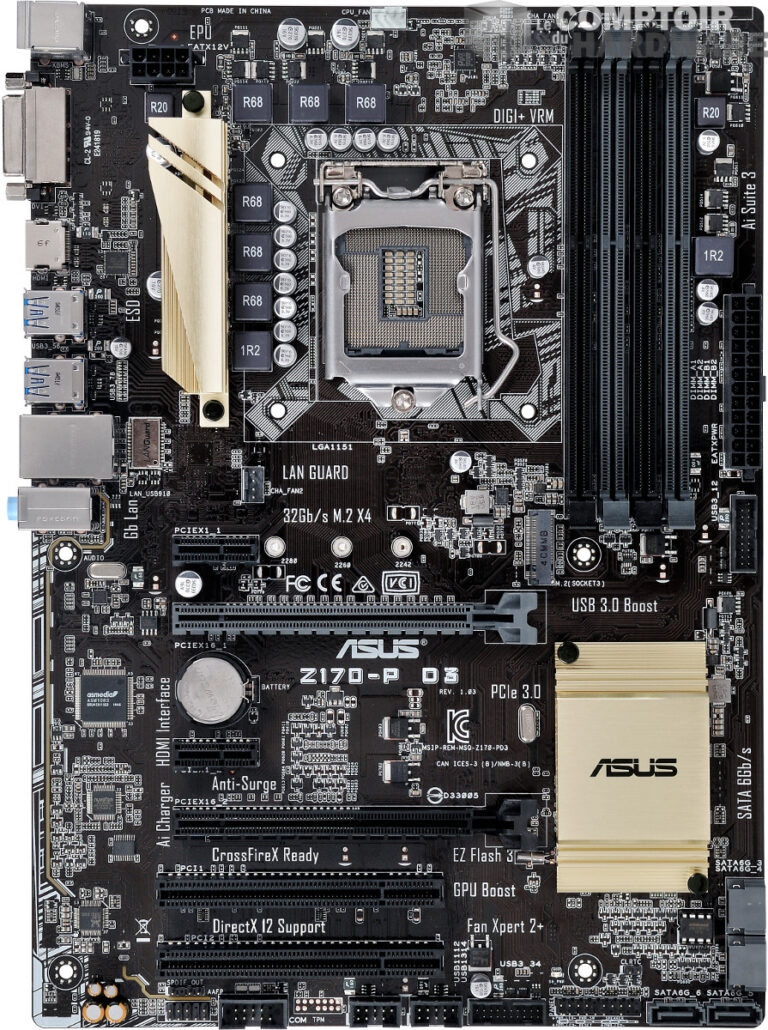

| ASUS Z170-P D3 | ATX | 7 phases | 4x DDR3-3100 | 2x PCIe 3.0 x16 2x PCIe 3.0 x1 2x PCI |
1x M.2 x4 4x SATA III |
DDR3 | |
114,90€ | 119,90€ |
| GIGABYTE Z170-HD3 DDR3 | ATX | – | 4x DDR3-1600 | 2x PCIe 3.0 x16 2x PCIe 3.0 x1 2x PCI |
1x M.2 x4 3x SATA Express 6x SATA III |
DDR3 Double BIOS UEFI |
|
– | – |
 |
 |
 |
| ASUS Z170-Deluxe | ASRock Z170 Extreme 7+ | ASRock Z170 Extreme 6+ |
 |
 |
 |
| ASRock Z170 Extreme 6 | ASRock Z170 Extreme 4+ | ASRock Z170 Extreme 4 |
 |
 |
 |
| GIGABYTE Z170X UD5 | ASUS Z170-A | GIGABYTE Z170X UD3 |
 |
 |
 |
| ASRock Z170 Pro 4 | ASUS Z170-AR | GIGABYTE Z170XP SLI |
 |
 |
 |
| ASRock Z170 Pro4/D3 | ASUS Z170-K | ASRock Z170 Pro4S |
 |
 |
 |
| GIGABYTE Z170 HD3P | GIGABYTE Z170 D3H | ASUS Z170-P |
 |
 |
 |
| GIGABYTE Z170 HD3 | ASUS Z170-P D3 | GIGABYTE Z170 HD3 DDR3 |
 |
 |
 |
| MSI Z170A PC Mate | MSI Z170A SLI Plus | MSI Z170A G43 Plus |
